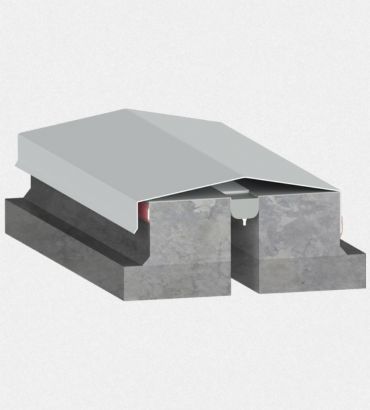

X-Joint RJ3-AL (Fully Waterproofed)

Preformed aluminum expansion waterproof expansion joint systems that is used on roofs upstands. It is used in joints up to 300mm joint gaps.

Description High movement (seismic) anodised aluminium/ PVC wall joint for use with a wall finish up to 16mm thick. Joint must fixed on to a concrete or masonry substrate.
Materials Joint Cover: 2mm thick preformed aluminum cover plate Fixing Strip: Anodised aluminum T6/6063 Waterproofing membrane: X-Pruf PolyLiner PVC Waterproofing Sealant: X-Tite Strong Seal
Supply Lengths Joint Plate: 2.44m, Fixing Strip: 3m / pcs, Membrane: 20m roll

Unlock the full potential of your space with solutions designed for safety, noise reduction, accessibility, water-resistance, durability, and aesthetic appeal.
